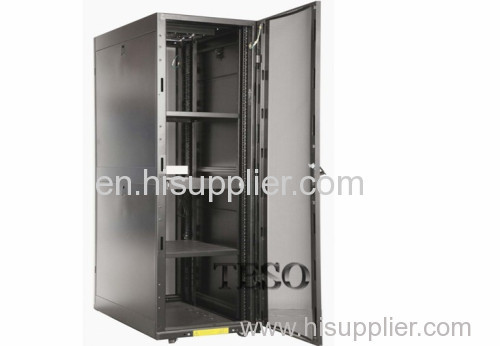

Product Description:

＊The cabinet is similar as APC's design.

＊Exquisite design with precision dimensions and craftsmanship.

＊ARC vented front/rear doors enable ventilation and reliable operation.Swiveling wheels and legs can be jointly installed to withstand up to 1500kg maximum static load .

＊Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable.

＊Easy-to-disassemble front/rear/left/right doors enable convenient operation from any sides of the rack .

＊Operation installation of base enables the rack to stay in a fixed position with meeting requirements of under-base wiring ventilation .

＊Linkage rack, full series of operational.

＊Large draught area: over 4500 square cm draught area regarding 42U network cabinet .

＊Sensitive thermostat panel option.

＊Flexible packing methods allows for convenient stocking and end user delivery.

＊Multiple sizes available:600MM,750MM width,600MM,800MM,1070MM depth,18U-47U height.

＊Customization requests welcome.

Standard:

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7, ETSI standard.

Material:

SPCC high grade cold rolled steel or EG steel. .

Thickness:

Mounting profile :2.0mm,others :1.2-1.5mm

Loading capacity :

Static Loading :1500kgs.

Surface painting :

Degrease ,acid pickling ,rust prevention and Parkerizing ,pure water cleaning ,static electricity plastic painting

Degree of protection :

IP20.

Body Color:

RAL7035,RAL9004,etc.
